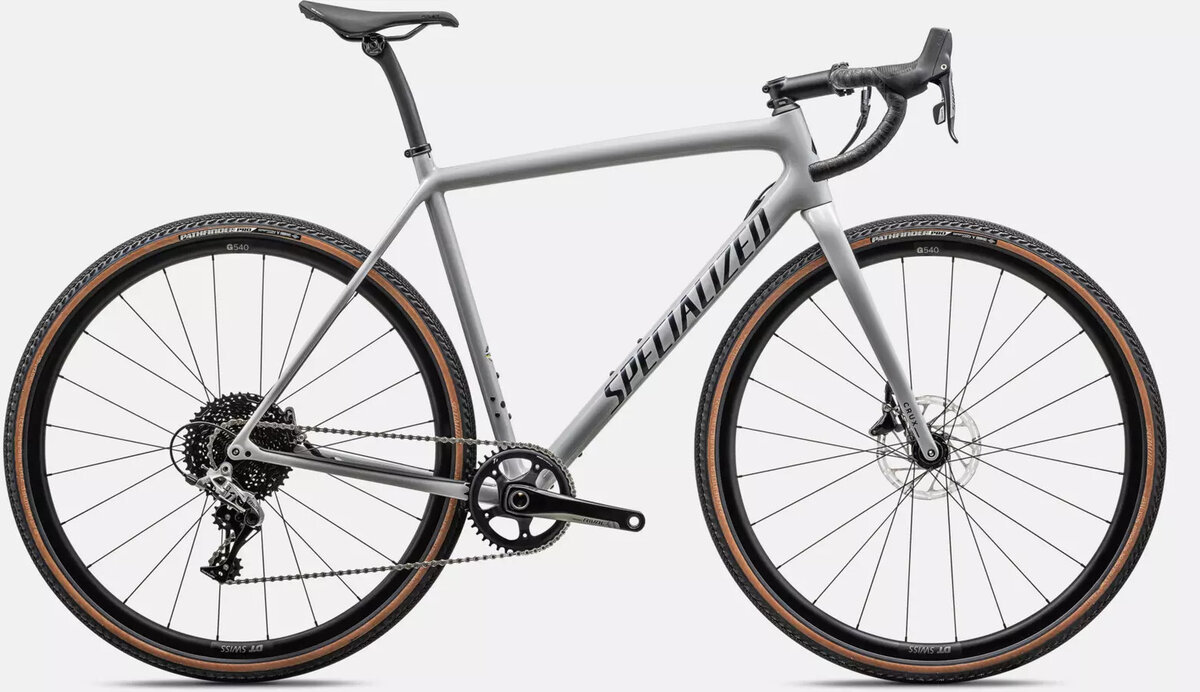

Specialized Crux Comp

Specialized Crux Comp
  • Color: Satin Forest Green/Metallic Deep Lake
  • Color: Gloss Dove Grey/Metallic Navy
$4,200.00
Color:
Gloss Dove Grey/Metallic Navy
Please select options

Details

The Crux is the lightest gravel bike in the world, with the exceptional capability of massive tire clearance and performance gravel geometry. It's not just the ultimate expression of gravel performance, it's your one-way ticket to gravel enlightenment.

This Crux Comp comes spec'd with a reliable and smooth-shifting SRAM Rival 1 hydraulic disc groupset, tough DT G540 Disc wheels, and 2Bliss Ready, 700x38mm Pathfinder Pro tires that hookup over nasty terrain.

- Lightest: 725g S-Works 12r and 825g 10r frames. We took the revolutionary breakthroughs that made Aethos the lightest bike ever and applied them to the Crux. The result? A gravel bike that climbs like a dream, floats over nightmarish terrain, and weighs less than a full bottle in your cage.

- Capable: 47c/650b x 2.1" tire clearance. More clearance means more capability. With Diverge-level tire clearance, Crux takes you anywhere you can imagine, at full gas.

- Responsive: Nimble, supple, and reactive. Responsive at the pedals. Supple in the saddle. With performance gravel geometry and race-influenced fit inspired by Crux's iconic history in 'cross.

Sizes:
Size (cm)495254565861
Crank Length (mm)170 170172.5172.5175175
Handlebar Width (mm)380 400420420440440
Stem Length (mm)70 8090100110110
Saddle Width (mm)155 155143143143143
Seatpost Length (mm)330 330330380380380
Wheelbase (mm)1008 10141023103310451059
Chainstay Length (mm)425 425425425425425
Head Tube Length (mm)100 115130147167190
Head Tube Angle (°)70.5 71.2571.57272.2572.5
BB Height (mm)284 284286286286286
Fork Rake/Offset (mm)50 5050505050
Seat Tube Length (mm)466 496521546576606
Stack (mm)530 547560578598621
Fork Length, Full (mm)401 401401401401401
Front Center (mm)594 600608618630644
Reach (mm)375 382388397405415
Seat Tube Angle (°)75.5 747473.573.573.5
BB Drop (mm)74 7472727272
Trail (mm)74 6967646260
Top Tube Length, Horizontal (mm)512 539549568582599
Bike Standover Height (mm)749 772794816841866
Sizes:
InchesCMSize
5'1"- 5'4" 155-158 49
5'4"-5'6" 163-168 52
5'6"-5'9" 168-175 54
5'9"-6'0" 175-183 56
6'0"-6'3" 183-191 58

Specs

Pedals Test Ride Pedals Provided By Specialized
Fork S-Works FACT Carbon, 12x100mm thru-axle, flat-mount disc
Stem 3D-forged alloy, 31.8mm, 7-degree rise
Chain KMC X11 Extra Lightweight, 11-speed
Frame Crux FACT 10r Carbon, Rider First Engineered™, Threaded BB, 12x142mm thru-axle, flat-mount disc
Tires F: Pathfinder Pro, 2Bliss Ready, transparent sidewall, 700x38mm. R: Pathfinder Pro, 2Bliss Ready, transparent sidewall, 700x38mm
Saddle Body Geometry Power Sport, steel rails
Wheels F: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples, R: DT Swiss G540 rim, 24mm internal width, tubeless ready, 24h, Specialized full sealed bearing thru axle hub, centerlock disc, DT Swiss Champion 14G stainless steel spokes, DT Swiss brass nipples
Crankset SRAM Rival 1x
Seatpost Roval Terra Carbon Seat Post, 20mm Offset
Shifters SRAM Force eTap AXS
Chainrings Steel, 30T
Handlebars Specialized Adventure Gear, 118.9mm drop x 70mm reach x 12º flare
Tape/Grips Supacaz Super Sticky Kush
Bottom Bracket SRAM GXP
Rear Derailleur SRAM Rival 1, long cage
Cassette/Freewheel SunRace, 11-speed, 11-42t

* Subject to change without notice.

Videos

Part Numbers

Option UPC MPN Store SKU
Gloss Dove Grey/Metallic Navy / 54cm 888818858347 91423-5254 210000077500
Gloss Dove Grey/Metallic Navy / 56cm 888818858644 91423-5256 210000077834
Gloss Dove Grey/Metallic Navy / 58cm 888818858309 91423-5258 210000077503
